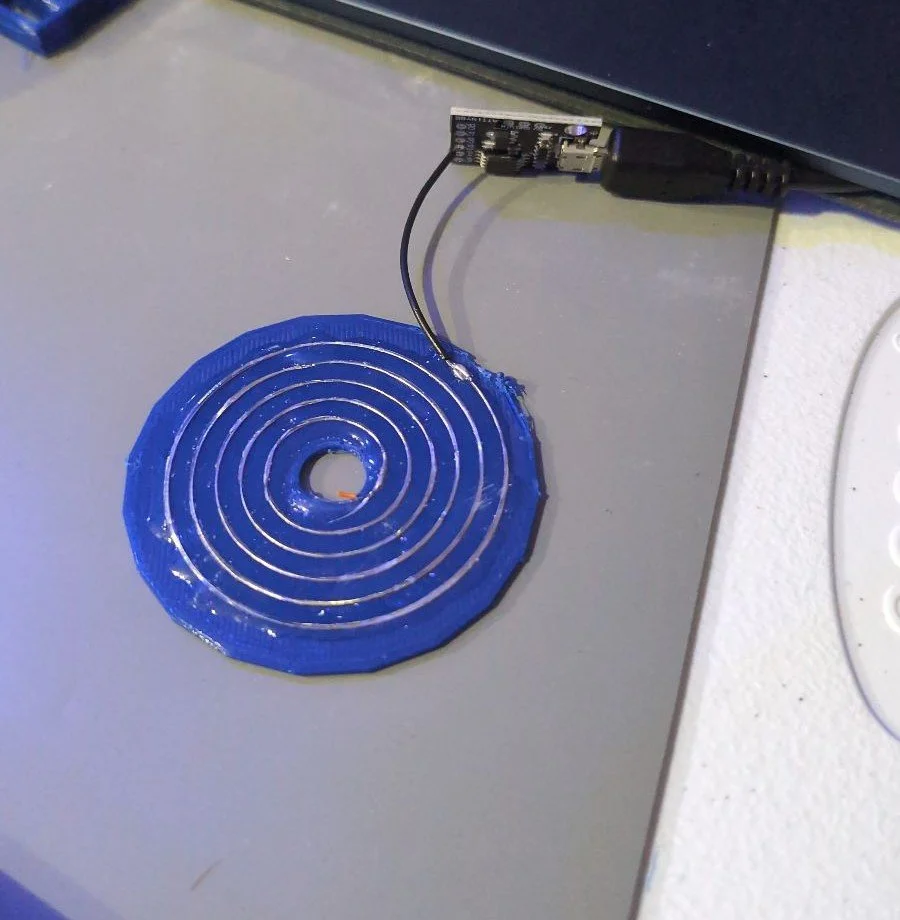

Conductive 3D Printing: Ink vs Filament

Conductive materials are what make conductive 3D printing possible. Instead of fabricating circuits separately and mounting them onto structures later, conductive printing technologies allow electrical features to be produced directly during the manufacturing process.

This capability sits within the broader category of 3D printed electronics, where circuits, antennas, and sensors are integrated into the physical structure of a component rather than assembled afterward.

Conductive Ink Printing

Many additive electronics systems rely on conductive inks that contain metallic nanoparticles, most commonly silver. These inks are deposited onto substrates using inkjet or aerosol printing systems to create electrical traces.

After printing, the traces typically require additional processing steps such as curing or sintering to achieve usable electrical conductivity. These extra steps can introduce workflow complexity and require tightly controlled processing conditions.

Ink-based approaches are often used when extremely fine traces are required or when working with specialized additive electronics machines designed for high-resolution deposition.

Conductive Filament Printing

An alternative approach uses conductive filament in FDM or FFF 3D printers. Instead of depositing conductive material onto a surface, conductive filament is extruded through the printer nozzle and integrated directly into the printed part.

This method allows electrical pathways to be printed alongside structural materials within the same component. Conductive filament workflows enable electrical and mechanical features to be manufactured simultaneously.

Examples of what conductive filament printing can enable include:

• Embedded signal routing

• Integrated sensors

• Conformal conductive paths

• Embedded antennas

• Multi-material printed electronics

Embedded 3D Printed Electronics

One of the most significant advantages of filament-based systems is the ability to create embedded 3D printed electronics. Instead of mounting electronics after a component is manufactured, conductive features can be printed directly into the structure itself.

This approach enables engineers to design mechanical and electrical systems together instead of treating them as separate assemblies.

Embedded conductive pathways can reduce wiring harnesses, simplify assembly, and allow electrical routing to follow complex geometries that would be difficult to achieve with traditional planar circuit boards.

Comparing Ink and Filament Approaches

Both conductive inks and conductive filament systems play important roles in additive electronics. However, they are optimized for different engineering goals.

Ink-based systems often prioritize resolution and precision, making them useful for micro-scale traces and research applications.

Filament-based systems emphasize integration and structural embedding, allowing electrical functionality to be incorporated directly into printed parts.

For many applications involving embedded electronics, the ability to integrate conductors directly into structural components can simplify system architecture and accelerate development.

Where Conductive 3D Printing Fits

Conductive additive manufacturing expands the design space available to engineers. Instead of relying exclusively on planar boards, electrical features can be integrated directly into mechanical components.

This approach is particularly valuable when geometry, integration, or rapid iteration are key drivers in system design.

Organizations evaluating conductive additive manufacturing often begin by building a small subsystem prototype to determine where embedded electrical features provide practical advantages.
